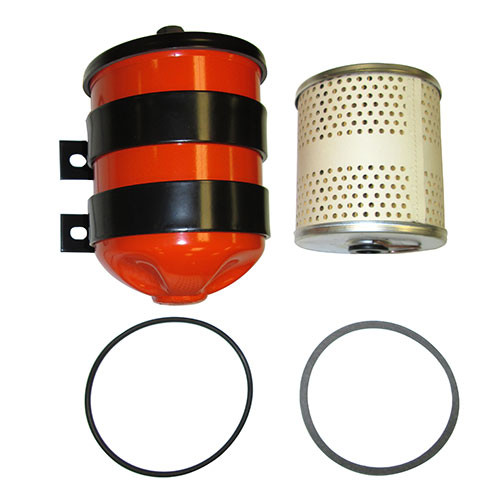

New Replacement Fram Style Oil Filter Canister Assembly Kit
Complete kit includes:
New oil filter element with gaskets
New Fram style metal canister assembly
New proper style clamp assemblies
Application
4-134 engine
Fits:
46-49 CJ-2A
49-53 CJ-3A
53-64 CJ-3B
55-66 CJ-5
Note:
Kit can also be used on military motors
To install the Oil Canister:
4-134 L-Head:
-The outlet hose (647583) must be installed on the end of the canister with a straight port fitting (A210).
-The inlet hose (647584) can be installed directly into the canister by the swivel end. The non-swivel end of the inlet hose is installed by the fuel pump into the 90 degree port fitting (A240) that should be installed into the block.
4-134 F-Head:
-The outlet hose (910290A) must be installed on the end of the canister with a straight port fitting (A210).
-The inlet hose (647585) must be installed on the side of the canister with a straight port fitting (A210). Either end of this hose can be installed in the canister for the ends are the same.
-The opposite end of the inlet hose does need to be installed with the 90 degree port fitting (A215D) by the fuel pump.
